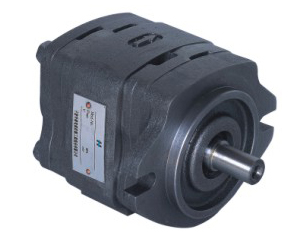

ItemNo: IGP-1Internal gear pump
IGP
Internal-Engaging Gear Pump is suitable for situations
requiring low noise, high pressure, stable running and
compact design, such as in plastic injection machines,
blowing machines, vulcanization machines, bending
machines and cutting machines. It is also used in
steering wheels, deck cranes, as well as vehicle
loading/unloading devices, lifting equipment and other
hoisting machinery.
Mechanism &
Features:
When the internal-engaged gear
set rotates, the fluid is sucked into the pump casing
and the cavity between the inner and outer gears, whilst
the bigger and smaller crescents and the engaged teeth
form seal in the circumferential direction at all times
due to the action of the spring plate and the supporting
tray forms an almost gapless seal in the axial
direction, thus minimizing the pump's volumetric loss
and the sucked fluid is transferred from the tip of the
teeth towards between the teeth and is ejected from
there at a high pressure.
The internal engaging of the gear set,
the slide bearing, the automatic compensation in both
axial and radial directions, are all good guarantees for
the unique and illuminated features of this pump,
namely: high pressure, low pulsation, low noise and
compact design.
Technical
Series-Model
|
IGP-1-3.5
|
IGP-1-3.5
|
IGP-1-6.3
|
IGP-1-8
|
IGP-1-10
|
Capacity
(ml/r)
|
3.6
|
5.2
|
6.4
|
8.2
|
10.2
|
Speed
(r/min)
|
Min. speed
|
400
|
MAX
speed
|
3000
|
Pressure (MPa)
|
Continue
working Pressure
|
31.5
|
|
33
|

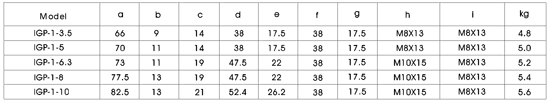

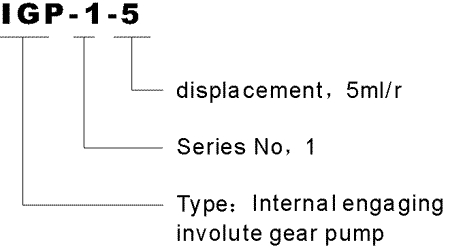

Model description

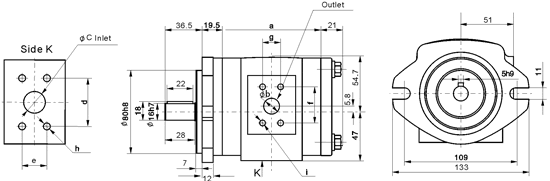

Mounting
size
IGP-1 Performance curves
|
|
|
