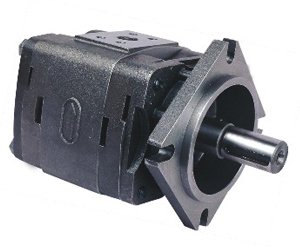

ItemNo: IGP-4 Internal gear pump
IGP Internal-Engaging Gear Pump is suitable
for situations requiring low noise, high pressure,
stable running and compact design, such as in plastic
injection machines, blowing machines, vulcanization
machines, bending machines and cutting machines. It is
also used in steering wheels, deck cranes, as well as
vehicle loading/unloading devices, lifting equipment and
other hoisting machinery.
Mechanism & Features:
When the internal-engaged gear
set rotates, the fluid is sucked into the pump casing
and the cavity between the inner and outer gears, whilst
the bigger and smaller crescents and the engaged teeth
form seal in the circumferential direction at all times
due to the action of the spring plate and the supporting
tray forms an almost gapless seal in the axial
direction, thus minimizing the pump's volumetric loss
and the sucked fluid is transferred from the tip of the
teeth towards between the teeth and is ejected from
there at a high pressure.
The internal engaging of the gear set, the slide
bearing, the automatic
compensation in both axial and radial directions, are
all good guarantees for
the unique and illuminated features of this pump,
namely: high pressure, low
pulsation, low noise and compact design.
Technical
|
IGP-1-64
|
IGP-1-80
|
IGP-1-100
|
IGP-125
|
|
64.1
|
80.7
|
101.3
|
126.2
|
|
|
400
|
400
|
400
|
400
|
|
2800
|
2400
|
2100
|
1800
|
Pressure (MPa)
|
Continue working
Pressure
|
30
|
28
|
25
|
21
|
MAx Pressure
|
33
|
31.5
|
30
|
25
|

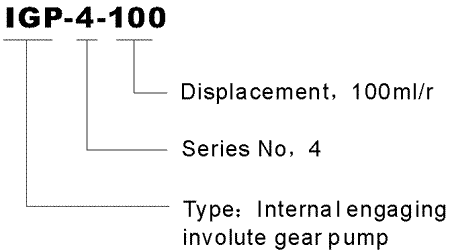

Model instruction

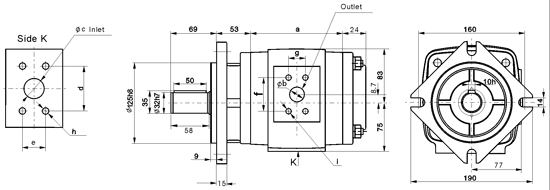

Mounting size
IGP-4

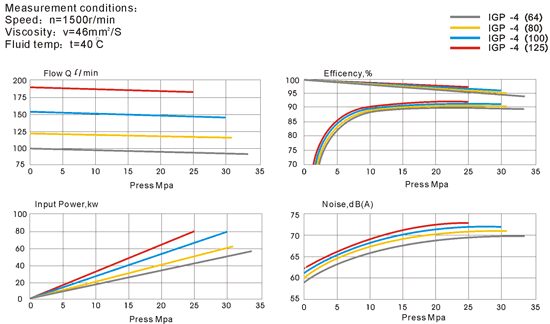

Performance curves
|
|
|
