Hydraulics Drive- Hydraulic Cylinders

 Products


Hydraulic cylinder for
Construction Machinery / engineering machine

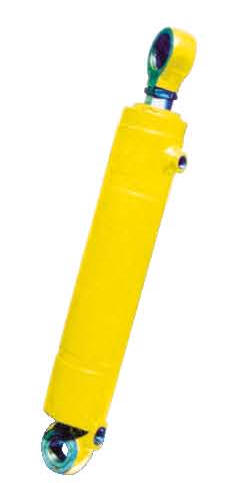

Hydraulic cylinder



I .Simple structure, stable work, easy installation and disassembly, easy repair
2.cushion can be installed

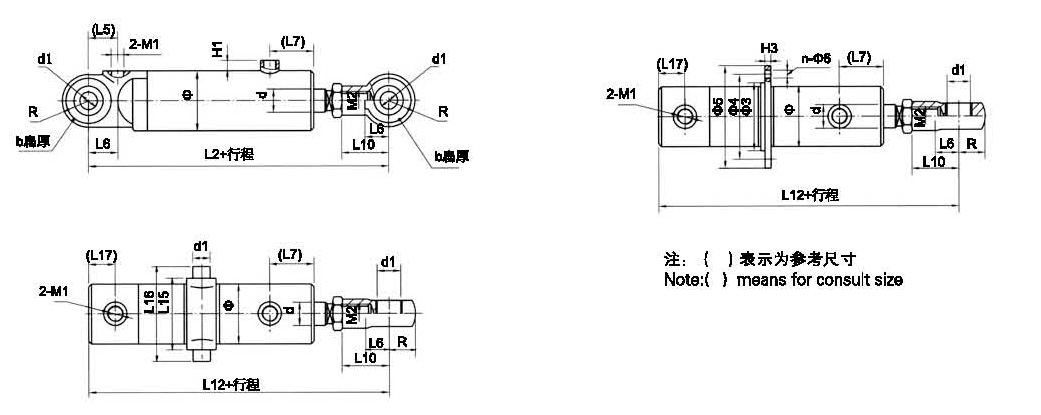

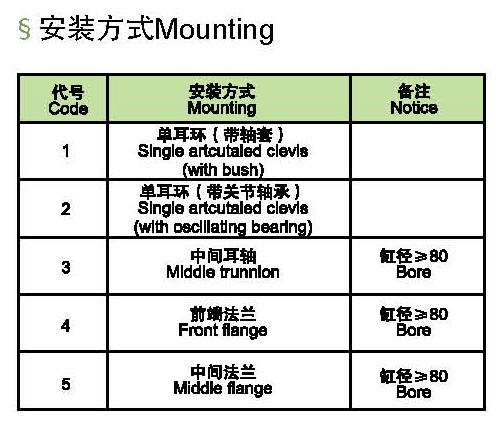

3.lots of connecting way, including Head eye bracket with bushing, Head eye bracket with spherical bearing, trunnion, Cap flange, Intermediate flange
4.Sealing system.. seal rings of NOK from Japan end Parker from USA that can overcome engineering construction conditions. as well as special designed sealing system are applied to prevent grit and dust, reduce oil leakage. 5.Cylinder body...the thickness of cylinder body and flange can be changed; the cylinder inner surfaces manufactured as per appropriate intensity and dimensions have excellent roughness and rigidity and batter wearing capacity after roll finishing.
6.Piston rod...high frequency quenching followed by hard chrome plating to improve rust proofing and wear and scar resisting performance.
7.Safety/buffer functions.. valves with slow stroke, counting balance and emergency close can be installed easily according to requirements. The concealed ones can absorb the impact of buffer device at the end of stroke.

Hydraulic cylinder

Hydraulic cylinder

Hydraulic cylinder

Hydraulic cylinder

Hydraulic cylinder

Hydraulic cylinder
