Hydraulics Drive- Hydraulic Cylinders

 Products


Hydraulic cylinder for Sanitation trucks

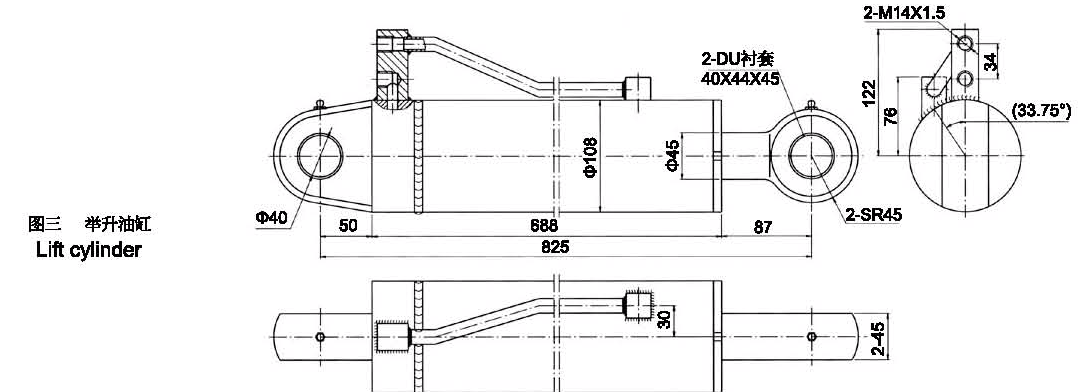

Hydraulic cylinder are widely used in different Sanitation trucks,city clear cars, garbage cara. This series include push board Hydraulic cylinder, slide board Hydraulic cylinder, scratch board Hydraulic cylinder, lift cylinder. There are two types, single piston rod double acting cylinder, and plunger type cylinder. It has the characteristic of reasonable construction, steady working, conveniently install and remove, and easily repair. We also can design the special model according to customer's requirements.

1.Have lots size, bore size from 25mm-300mm
2.cushion can be installed

3.Fixlng type: trunnion or flange or according to customer's requirements
4.Sealing
system. seal rings of NOK from Japan and Parker from USA that have good lifetime. They are applied to prevent grit and dust, reduce oil leakage.
5.Cylinder body...the thickness of cylinder body and flange can be changed; the cylinder inner surfaces manufactured as par appropriate intensity and dimensions have excellent
roughness and
rigidity and better wearing capacity alter roll
finishing.
6.
Piston rod.. high frequency quenching followed by hard chrome
plating to improve mat proofing and wear and scar resisting
performance.
7.Safaty/buffer functions.. valves with slow stroke, counting
balance and emergency close can be installed easily according
to requirements. The concealed ones can
absorb the impact of
butter device at the end of stroke.

Hydraulic cylinder for Sanitation trucks

Hydraulic cylinder for Sanitation trucks

Hydraulic cylinder for Sanitation trucks
