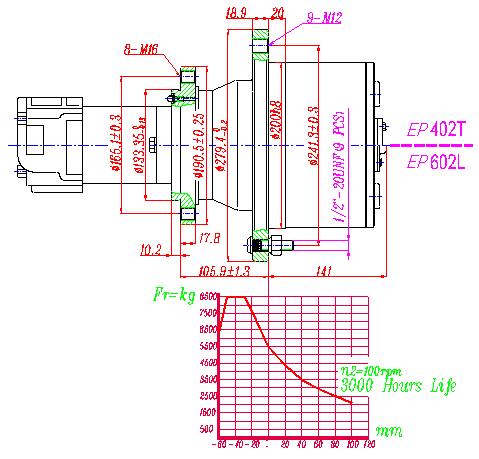

EP402T2-**-WO-** TRACK DRIVES
EP602L2-**-WO-** WHEEL DRIVES
|
Technical specification
Max.Output Torque
(N.m) |
Ratio
(i) |
Recommend Hydraulic Motor
|
Max. input speed
(rpm) |
Brake torque
(N.m) |
Brake work pressure
(bar) |
EP402T |
EP402W |
EP602L |
7000 |
---- |
7000 |
18.6
24.4
29.3
37.1 |
EATON, 2K
SAE A adopt
¦Õ25 Shaft Z13,DP16/32 Spline |
4000 |
---- |
---- |
- Input rotation opposite output rotation.
- Other ratio and other input type can be specially designed.
- If with manual disconnect device, please add mark ¡°M¡± at the end of the product model.
- Without brake.
