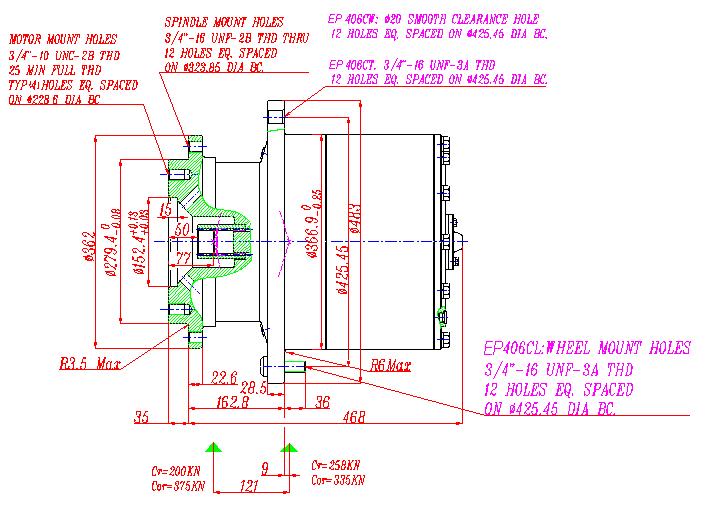

EP406CT2 TRACK DRIVES (W12D)
EP406CW2 WINCH DRIVES (W12D)
EP606CL2 WHEEL DRIVES (W12D)

EP406CT2 TRACK DRIVES (W12D), EP406CW2 WINCH DRIVES (W12D), EP606CL2 WHEEL DRIVES (W12D)

Technical specification


Max.Output Torque
(N.m)

Ratio
(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP406CT

EP406CW

EP606CL

28230

14115

14115

19.96
30.48
36.81

SAE D,13T DP8/16
SAE C,14T,DP12/24

4000

---

---

  1. Input¡ªOutput rotate same direction.
  2. Other ratio and other input type can be specially designed.
  3. If with manual disconnect application, please add mark ¡°M¡± at the end of product model.



Back To Planetary GearBox
