EP705L4, EP706L4 Yaw and Pitch drive
EP707L4, EP709L4 Yaw and Pitch drive
|

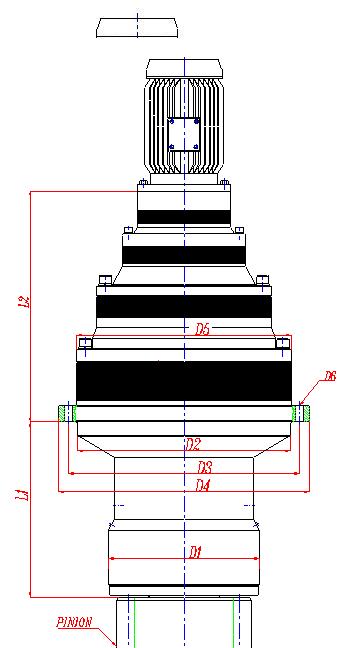

Dimension |
Type |
³ß´ç |
EP705L4 |
EP706L4 |
EP707L4 |
EP709L4 |
D1 |
180 |
200 |
230 |
250 |
D2 |
195 |
250 |
280 |
280 |
D3 |
245 |
325 |
314 |
380 |
D4 |
290 |
360 |
348 |
420 |
D5 |
245 |
292 |
345 |
345 |
D6 |
12-§æ13 |
10-§æ17 |
12-§æ17 |
12-§æ17 |
L1 |
171 |
225 |
295 |
295 |
L2 |
Size according to motor type
|
Pinion data |
Pinion data according to customer |
|
|
Technical specification
Type |
Nominal
Output Torque |
Peak Static
Output Torque |
Ratio |
|
(N.m) |
(N.m) |
(i) |
EP705L4 |
5000 |
10000 |
278--1866 |
EP706L4 |
8000 |
15000 |
203--2045 |
EP707L4 |
12000 |
25000 |
278--1856 |
EP709L4 |
18000 |
30000 |
278--1856 |
- Input ¨C output rotate same direction.
- Other ratio can be specially designed.
