EP705L, EP706L SLEW DRIVES
EP707L, EP709L SLEW DRIVES
|

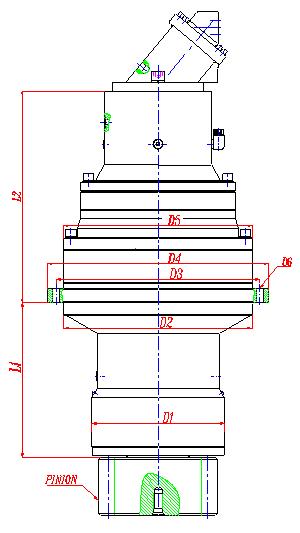

Dimension |
Type |
|
EP705L |
EP706L |
EP707L |
EP709L |
D1 |
180 |
200 |
230 |
250 |
D2 |
195 |
250 |
280 |
280 |
D3 |
245 |
325 |
314 |
380 |
D4 |
290 |
360 |
348 |
420 |
D5 |
245 |
292 |
345 |
345 |
D6 |
12-§æ13 |
10-§æ17 |
12-§æ17 |
12-§æ17 |
L1 |
171 |
225 |
295 |
295 |
L2 |
Size according to motor type
|
Pinion data |
Pinion data according to customer |
|
|
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend
Hydraulic
Motor |
Max. input
speed |
Brake
torque |
Brake work
pressure |
|
Excavator
|
Crane
|
(i) |
(rpm) |
(N.m) |
(bar) |
EP705L |
5000 |
6500 |
12.4¡ª174.5 |
SAE A¡¤B ¡¤C adopt |
3500 |
50-400 |
20-50 |
EP706L |
7700 |
12000 |
13.5¡ª142.5 |
SAE D¡¤E adopt |
50-1000 |
EP707L |
10500 |
165000 |
12.6¡ª257.7 |
A2FE 45¡¤56¡¤63 |
EP709L |
16000 |
26000 |
12.6¡ª257.7 |
A2FE 80¡¤90 |
- Input ¨C output rotate same direction.
- Other ratio and other input type can be specially designed.
