EP705L, EP706L SLEW DRIVES
EP707L, EP709L SLEW DRIVES
|

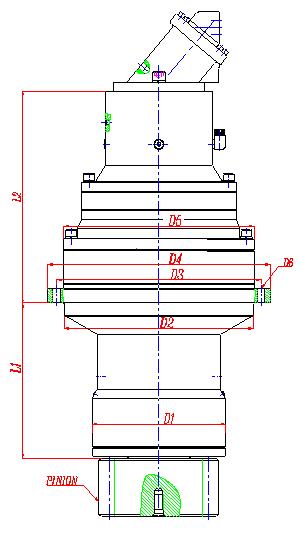

Dimension |
Type |
|
EP711L |
EP713L3 |
EP715L3 |
D1 |
300 |
340 |
370 |
D2 |
425 |
400 |
470 |
D3 |
460 |
510 |
600 |
D4 |
500 |
560 |
640 |
D5 |
428 |
445 |
542 |
D6 |
12-§æ22 |
24-§æ22 |
24-§æ22 |
L1 |
345 |
420 |
465 |
L2 |
Size according to motor type
|
Pinion data |
Pinion data according to customer |
|
|
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend
Hydraulic
Motor |
Max. input
speed |
Brake
torque |
Brake work
pressure |
|
Excavator
|
Crane
|
(i) |
(rpm) |
(N.m) |
(bar) |
EP711L |
32000 |
45000 |
14.0¡ª223.0 |
A2FE 80¡¤90¡¤107¡¤125 |
2500 |
400-3200 |
20-50 |
EP713L3 |
40000 |
55000 |
50.3¡ª276.1 |
A2FE 160¡¤180 |
3500 |
400-1000 |
EP715L3 |
70000 |
80000 |
53.8¡ª241.9 |
A2FM 250¡¤355 |
2500 |
850-3200 |
- Input ¨C output rotate same direction.
- Other ratio and other input type can be specially designed.
Back To Planetary GearBox
|
|
|
