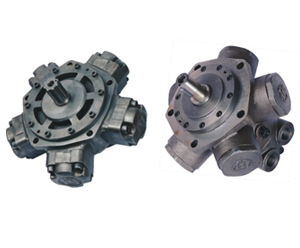

ItemNo: JM Radial piston eccentric hydraulic
motors
The JM series crank
link hydraulic motors, with end side fluid compensation,
are a newly developed product based on similar domestic
product and drawing merits from advanced overseas
technology and processes. With such features as wide
speed range, stable speed adjustment, low speed
stability, excellent start performance, large output
torque, high efficiency, long service life and low
noise, it is widely used in low-speed heavy-load
hydraulic transmission units for plastic molding, light
industry, metallurgical, machinery as well as ships and
lifting equipment.

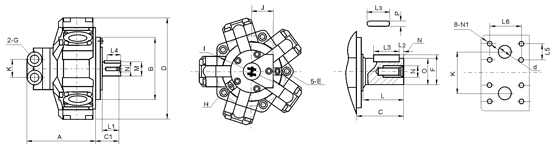

Mounting dimensions
|
|
A
|
B
|
C
|
D
|
I
|
O
|
L
|
E
|
K
|
G
|
G
|
|
JMO
|
180
|
Ф125f7
|
64
|
Ф228
|
φ160±0.2
|
Ф35f7
|
44
|
Ф13
|
56
|
G3/4"
|
G1/4"
|
|
JMA
|
185
|
Ф162f7
|
73.5
|
Ф260
|
φ180±0.2
|
Ф40f7
|
53
|
Ф13.5
|
56
|
G3/4"
|
G1/4"
|
|
JMB
|
295
|
Ф190f7
|
79
|
Ф298
|
φ210±0.2
|
Ф38f7
|
57
|
Ф13.5
|
56
|
G3/4"
|
G3/8"
|
|
JMC
|
225
|
Ф230f7
|
90
|
Ф390
|
φ254±0.2
|
Ф42f7
|
63
|
Ф16
|
56
|
G3/4"
|
G3/8"
|
|
JMD
|
260
|
Ф256f7
|
103
|
Ф451
|
φ300±0.2
|
Ф54f7
|
90
|
Ф17
|
69
|
G1
|
G1/2"
|
|
JME
|
292
|
Ф301f7
|
148
|
Ф510
|
φ327±0.2
|
Ф72f7
|
110
|
Ф21
|
69
|
Ф25
|
G1/2"
|
|
JMF
|
410
|
Ф380f7
|
166.5
|
Ф640
|
φ420±0.2
|
Ф85f7
|
131
|
Ф25
|
100
|
Ф40
|
G1/2"
|
|
JMH
|
510
|
Ф501f7
|
240
|
Ф814
|
φ580±0.2
|
Ф120f7
|
188
|
Ф33
|
100
|
Ф40
|
M22x1.5
|
|
JMG
|
545
|
Ф501f7
|
250
|
Ф890
|
φ720±0.2
|
Ф140f7
|
215
|
Ф33
|
100
|
Ф40
|
M22x1.5
|
|
|
L1
|
L2
|
L3
|
F
|
J
|
N
|
P
|
M
|
|
JMO
|
22
|
2
|
40
|
38
|
64
|
M12
|
10h9
|
6-30b12×25b12×6f8
|
|
JMA
|
36
|
5
|
45
|
43
|
64
|
M12
|
12h9
|
6-30b12×25b12×6f8
|
|
JMB
|
38
|
5
|
45
|
41
|
64
|
M12
|
10h9
|
8-38b12×32b12×6f8
|
|
JMC
|
43
|
5
|
50
|
45
|
64
|
M14
|
12h9
|
8-42b12×36b12×7f8
|
|
JMD
|
50
|
5
|
80
|
57
|
78
|
M16
|
14h9
|
8-50b12×46b12×9f8
|
|
JME
|
65
|
5
|
100
|
75.5
|
78
|
M16
|
18h9
|
8-72b12×62b12×12f8
|
|
JMF
|
80
|
5
|
120
|
90
|
95
|
M16
|
24h9
|
10-92b12×82b12×12f8
|
|
JMG
|
165
|
5
|
160
|
127
|
95
|
M16
|
32h9
|
10-120b12×112b12×18f8
|
|
JMH
|
180
|
5
|
190
|
148.5
|
95
|
M16
|
36h9
|
10-140b12×125b12×20f8
|

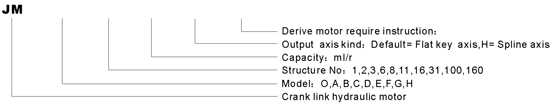

Model instruction
Technical specs
|
Model JM
|
Capacity, ml/r
|
Press., MPa
|
Torque, N.M
|
Speed, rpm
|
Weight, Kg
|
|
Rating
|
Max
|
Rating
|
Unit
Theoretic Torque
|
|
0-100
|
96
|
25
|
32
|
350
|
14
|
15-1000
|
20
|
|
0-125
|
126
|
20
|
25
|
380
|
19
|
15-1000
|
|
0-160
|
159
|
20
|
25
|
472
|
23
|
15-1000
|
|
A-100
|
113
|
25
|
32
|
420
|
18
|
10-1250
|
27
|
|
A-150
|
159
|
25
|
32
|
620
|
25
|
10-1000
|
|
A-175
|
176
|
20
|
25
|
526
|
28
|
10-1000
|
|
A-200
|
201
|
20
|
25
|
600
|
32
|
8-800
|
|
A-250
|
254
|
16
|
20
|
607
|
40
|
8-630
|
|
B-250
|
254
|
25
|
32
|
949
|
40
|
8-630
|
35
|
|
B-300
|
289
|
20
|
25
|
864
|
46
|
6-500
|
|
B-350
|
351
|
20
|
25
|
1040
|
55
|
6-400
|
|
B-400
|
397
|
16
|
20
|
949
|
63
|
6-400
|
|
C-400
|
397
|
25
|
32
|
1483
|
63
|
5-630
|
57.5
|
|
C-450
|
452
|
25
|
32
|
1638
|
72
|
5-630
|
|
C-500
|
491
|
20
|
25
|
1463
|
78
|
5-500
|
|
C-600
|
594
|
20
|
25
|
1775
|
94
|
4-500
|
|
C-700
|
683
|
16
|
20
|
1633
|
103
|
4-400
|
|
D-700
|
714
|
25
|
32
|
2667
|
114
|
4-400
|
94
|
|
D-800
|
782
|
25
|
32
|
2959
|
120
|
4-400
|
|
D-1000
|
995
|
20
|
25
|
2974
|
158
|
3-320
|
|
D-1100
|
1116
|
20
|
25
|
3336
|
177
|
3-320
|
|
D-1200
|
1175
|
16
|
25
|
3512
|
187
|
3-320
|
|
D-1300
|
1296
|
16
|
20
|
3080
|
197
|
3-250
|
|
E-1600
|
1648
|
25
|
32
|
6158
|
262
|
2-400
|
170
|
|
E-2000
|
2034
|
20
|
25
|
6030
|
323
|
2-320
|
|
F-2800
|
2826
|
25
|
32
|
10559
|
443
|
1-200
|
298
|
|
F-3150
|
3142
|
20
|
25
|
9392
|
500
|
1-200
|
|
F-4000
|
4170
|
20
|
25
|
12481
|
665
|
1-160
|
|
G-6300
|
6765
|
25
|
32
|
22916
|
975
|
0.5-125
|
700
|
|
G-10000
|
9982
|
20
|
25
|
31942
|
1699
|
0.3-100
|
|
H-12500
|
1334
|
20
|
25
|
39460
|
1973
|
0.3-80
|
1000
|
|
|
|
