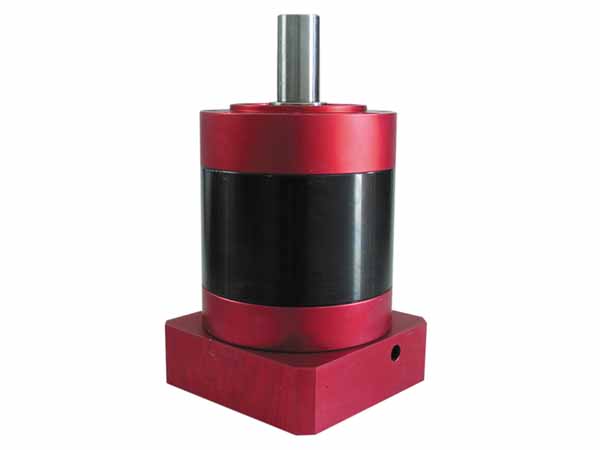

Planetary Gearboxes
HANGZHOU CHINABASE MACHINERY CO., LTD. have many years of experience in
Planetary Gearboxes, we produce very high quality planetary gearboxes with very
competitive prices.Planetary
Gearboxes have been designed for different
transmission . The power is transmitted form the
motor to sun gearboxes. The sun gearboxes drives three Planetary Gearboxes,
which
are contained within an internal toothed ring gearboxes. The Planetary Gearboxes
are mounted on the planetary carrier. The planetary carrier is part output
shaft. So when the sun gearboxes rotates, it drives the three Planetary Gearboxes
inside the ring gearboxes. As Planetary Gearboxes rotate with carries and
automatically the highest torque and stiffness for a given envelope. The other
significant advantages are simple and efficient lubrication and a balanced system
at high speeds. The balanced planetary kinematics and the associated load sharing
makes the planetary-type gearboxes truly ideal for servo
applications. Modular concept,allows us to affer
particularly short delivery time for gearboxes with a constantly high standard
of quality wether your applications requires a reducer for motors, Let our term
of engineers work for you.
|
PL planetary gearboxes technical data:
Type |
|
PL40 |
PL60 |
PL90 |
PL120 |
PL160 |
Ratio |
Stages |
Nominal
output torqueT2N |
Nm |
25 |
66 |
158 |
337 |
950 |
3 |
1 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
4 |
23 |
53 |
124 |
300 |
850 |
5 |
10 |
26 |
67 |
150 |
510 |
8 |
- - |
- - |
- - |
150 |
510 |
10 |
25 |
66 |
158 |
337 |
950 |
9 |
2 |
25 |
66 |
158 |
337 |
950 |
12 |
25 |
66 |
158 |
337 |
950 |
15 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
16 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
20 |
23 |
53 |
124 |
300 |
850 |
25 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
32 |
23 |
53 |
124 |
300 |
850 |
40 |
10 |
26 |
67 |
150 |
510 |
64 |
25 |
66 |
158 |
337 |
950 |
60 |
3 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
80 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
100 |
25 |
66 |
158 |
337 |
950 |
120 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
160 |
23 |
53 |
124 |
300 |
850 |
200 |
27.5 |
71.5 |
172.5 |
360 |
1030 |
256 |
23 |
53 |
124 |
300 |
850 |
320 |
10 |
26 |
67 |
150 |
510 |
512 |
Emergency stop |
|
T2Not=2T2N |
Type |
|
PL40 |
PL60 |
PL90 |
PL120 |
PL160 |
Stages |
Frmax.for10.000h |
N |
293 |
492 |
841 |
2259 |
6196.6 |
|
Famax.for10.000h |
N |
200 |
339 |
580 |
1558 |
4273.5 |
|
Efficiency with full load |
% |
96 |
1 |
94 |
2 |
90 |
3 |
Average lifetime |
h |
20000 |
|
Weight |
Kg |
0.37 |
0.90 |
2.25 |
6.00 |
18.00 |
1 |
0.45 |
1.10 |
2.65 |
7.80 |
24.00 |
2 |
0.53 |
1.30 |
3.10 |
9.50 |
29.00 |
3 |
Type |
|
PL40 |
PL60 |
PL90 |
PL120 |
PL160 |
Ratio |
Moment of
inertia |
kgcm2 |
0.031 |
0.135 |
0.77 |
2.63 |
12.14 |
3 |
0.022 |
0.093 |
0.52 |
1.79 |
7.78 |
4 |
0.019 |
0.078 |
0.45 |
1.53 |
6.07 |
5 |
0.017 |
0.065 |
0.39 |
1.32 |
4.63 |
8 |
-- |
-- |
-- |
2.62 |
12.37 |
10 |
0.03 |
0.131 |
0.74 |
2.62 |
12.15 |
9 |
0.029 |
0.127 |
0.72 |
2.56 |
12.37 |
12 |
0.023 |
0.077 |
0.71 |
2.53 |
12.35 |
15 |
0.022 |
0.088 |
0.5 |
1.75 |
7.47 |
16 |
0.019 |
0.075 |
0.44 |
1.5 |
6.65 |
20 |
0.019 |
0.075 |
0.44 |
1.49 |
5.81 |
25 |
0.017 |
0.064 |
0.39 |
1.3 |
6.36 |
32 |
0.016 |
0.064 |
0.39 |
1.63 |
5.28 |
40 |
0.016 |
0.064 |
0.39 |
1.3 |
4.5 |
64 |
0.029 |
0.076 |
0.51 |
2.57 |
7.5 |
60 |
0.019 |
0.075 |
0.5 |
1.5 |
7.5 |
80 |
0.019 |
0.075 |
0.44 |
1.49 |
7.4 |
100 |
0.029 |
0.064 |
0.7 |
2.5 |
7.3 |
120 |
0.016 |
0.064 |
0.39 |
1.3 |
6.5 |
160 |
0.016 |
0.064 |
0.39 |
1.3 |
6.2 |
200 |
0.016 |
0.064 |
0.39 |
1.3 |
5.7 |
256 |
0.016 |
0.064 |
0.39 |
1.3 |
5.4 |
320 |
0.016 |
0.064 |
0.39 |
1.3 |
5.2 |
512 |
Banklash |
|
arcmin(分) |
PL40 |
PL60 |
PL90 |
PL120 |
PL160 |
Stages |
precision |
<5 |
<3 |
<3 |
<3 |
<5 |
1 |
criterion |
<10 |
<8 |
<8 |
<8 |
<10 |
1 |
precision |
<8 |
<5 |
<5 |
<5 |
<8 |
2 |
criterion |
<12 |
<10 |
<10 |
<10 |
<12 |
2 |
precision |
<10 |
<8 |
<8 |
<8 |
<10 |
3 |
criterion |
<15 |
<12 |
<12 |
<12 |
<15 |
3 |
|
|
PL40 |
PL60 |
PL90 |
PL120 |
PL160 |
Torsional rigidity |
Nm/arcmin |
0.7 |
1.8 |
4.4 |
9.2 |
26.7 |
Noise |
dB(A) |
55 |
58 |
60 |
65 |
70 |
Max.input speed |
min-1 |
10000 |
8000 |
6000 |
6000 |
6000 |
Advised input speed |
min-1 |
4500 |
4000 |
4000 |
3500 |
3000 |
PL planetary gearboxes dimensions:
|
Type |
|
PL40 |
PL60 |
PL90 |
PL1201 |
PL1602 |
|
stages |
|
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
D1 |
flange holes circle |
|
34 |
52 |
70 |
100 |
145 |
D2 |
Mounting threadx
depth |
4× |
M4×6 |
M5×8 |
M6×10 |
M10×16 |
M12×20 |
D3 |
Output shaft
diameter |
h6 |
10 |
14 |
20 |
25 |
40 |
D4 |
Shaft root |
|
12 |
17 |
25 |
35 |
55 |
D5 |
Output centering |
h7 |
26 |
40 |
60 |
80 |
130 |
D6 |
body diameter |
|
45 |
60 |
80 |
115 |
160 |
D7 |
Input center bore for
motor |
H7 |
30 |
50 |
70 |
110 |
114.3 |
D8 |
Input pinion bore |
F7 |
8 |
14 |
19 |
22 |
35 |
D9 |
Hole circle |
|
46 |
70 |
90 |
145 |
200 |
D10 |
Mounting threadx
depth |
|
M4×10 |
M5×12 |
M6×15 |
M8×20 |
M12×25 |
Q1 |
Input flange |
□ |
40 |
60 |
80 |
120 |
175 |
L1 |
Key length |
|
15 |
25 |
30 |
40 |
65 |
L2 |
Distance from shaft
end |
|
4 |
2.5 |
3 |
5 |
7.5 |
L3 |
Shaft length from
spigot |
|
23 |
30 |
36 |
50 |
80 |
L4 |
Shaft length from
output |
|
26 |
35 |
40 |
55 |
87 |
L5 |
Body length |
|
38 |
50 |
61.7 |
46.2 |
59.5 |
72.8 |
60.5 |
77.5 |
95 |
99.5 |
126.5 |
153.5 |
173.5 |
223 |
263.5 |
L6 |
Motor flange length |
|
29.3 |
32.6 |
44.5 |
40 |
25 |
L7 |
Overal lngth |
|
93.3 |
105.3 |
117 |
113.8 |
127.1 |
140.4 |
145 |
162 |
179.5 |
194.5 |
221.5 |
248.5 |
285.5 |
335 |
375.5 |
L8 |
Spigot depth |
|
2 |
3 |
3 |
4 |
5 |
L9 |
Motor location depth |
|
3.5 |
6.5 |
6.5 |
6.5 |
3.5 |
L10 |
Motor shaft length |
|
25 |
30 |
40 |
55 |
79 |
B1 |
Key width |
|
3 |
5 |
6 |
8 |
12 |
H1 |
Key height |
|
11.2 |
16 |
22.5 |
28 |
43 |
Z |
Orient holes |
|
M3×9 |
M5×12 |
M6×16 |
M10×22 |
M12×25 |
*For longer motor shafts L6 applies:The measure L6 and
L10 will be lengthen by the same amount as the motor
shaft. Hornwork 1)i=10hour,D6=φ120,L5=82,L6=56,L7=193;Hornwork
2)i=10hour,L5=178,L7=290。 | |
