BA series bevel gear operators - Worm&Bevel Gear Operators

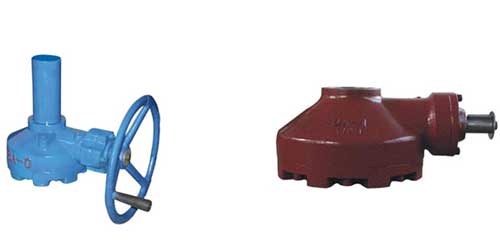

Type BA Series bevel gear operators are directly mounted on gate and globe valves which receive the thrust loads. This results in easy manual opening and closing of the valves. Type BA also may be mounted onto existing valves with the use of an adaptor.
The unit is of compact design with integral thrust bearings.
With its high cost performance, hundred thousands of BA operate in industrial fields such as water and waste water works, dams, power stations etc.

Model	BA-00	BA-0	BA-1	BA-2	BA-3	BAA-3	BAA-4
Ratio	3:1	3:1	4:1	5:1	6:1	18:1	48:1
Rotate speed	480	735	1470	2840	4000	6000	7200
Max.thrust(N)	64000	98000	196000	340000	490000	630000	750000
Max.Dia.of valve rod	28	35	52	70	90	115	130
Weight(kg)	22	28	54	110	230	370	480

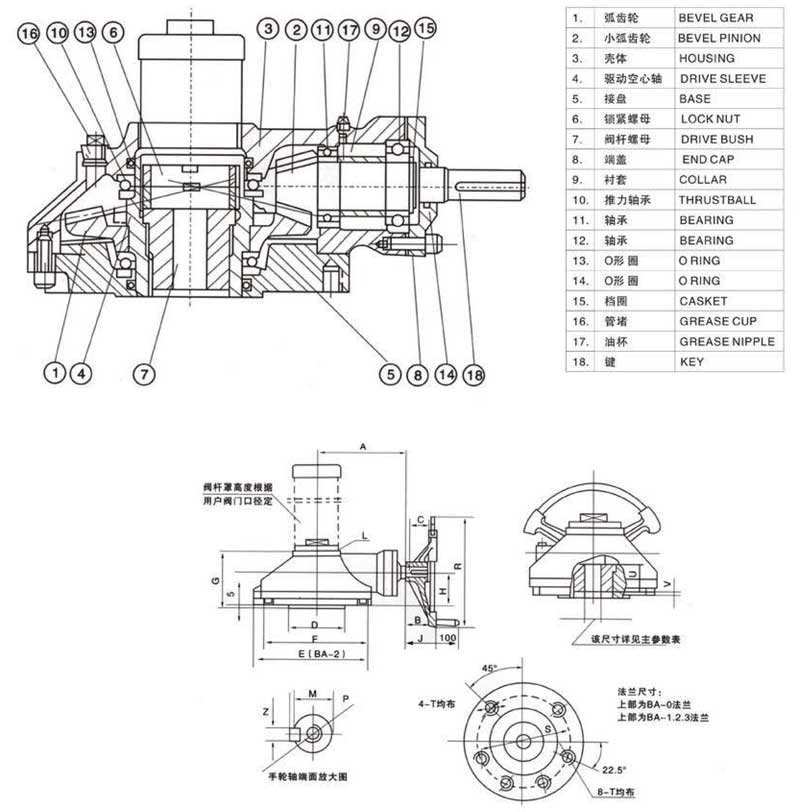

A	150	170	233	360	370	395	480
B	60	60	65	65	65	70	70
C	40	55	55	55	60	60	60
D(φ)	100	127	200	230	250	260	300
E				390	440	510	560
F	180	210	280	340	400	420	480
J	75	92	107	107	118	118	118
G	105	140	170	230	310	330	360
H	80	85	97	142	160	178	355
L	M75×1.5	M75×1.5	M89×2	M144×2.5
P(φ)	28_-0.1	28_-0.1	32_-0.1	32_-0.1	38_-0.1	38_-0.1	38_-0.1
N	8	8	10	10	10	10	10
M	31.6_-0.15	31.6_-0.15	35.5_-0.15	35.5_-0.15	41.5_-0.15	41.5_-0.15	41.5_-0.15
S(φ)	140	165	245	300	340	356	410
R(φ)	310	310	460	460	600	600	600
T	M16×4deep25	M18×4deep25	M14×8deep35	M20×8deep35	M24×8deep40	M30×8deep45	M36×8deep55
U	60	65	80	80	120	165	180
V		0	0	0	25	30	35
