speed reducer

speed reducer

DS(WPDS)

Shaft Direction
speed reducer

speed reducer

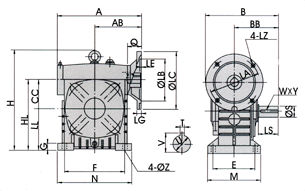

SIZE	KW	RATIO	A	AB	B	BB	CC	E	F	G	H	HL	LL	M	N	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			Kg
																	LA	LB	LC	LE	LG	LZ	Q	U	T×V	LS	S	W×Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	175	95	50	95	110	15	180	130	80	120	140	11	115	95	140	5	10	M8	25	11	4×12.5	40	17	5×3	7
60	0.37		185	105	190	110	60	105	120	20	205	150	90	130	150	11	130	110	160	5	12	M8	35	14	5×16.3	50	22	7×4	11
70	0.37		209	115	210	130	70	115	150	20	235	175	105	150	190	15	130	110	160	5	12	M8	35	14	5×16.3	60	28	7×4	15
	0.75				230												165	130	200		15	M10	45	19	6×21.8
80	0.75		242	135	240	140	80	135	180	20	265	200	120	170	220	15	165	130	200	5	15	M10	45	19	6×21.8	65	32	10×4.5	23
	1.5																						55	24	8×27.3
100	1.5		310	175	255	155	100	155	220	25	363	250	150	190	260	15	165	130	200	5	15	M10	55	24	8×27.3	75	38	10×4.5	38
120	2.2		361	205	310	185	120	180	260	30	424	300	180	230	320	18	215	180	250	5	18	M12	65	28	8×31.3	85	45	12×4.5	65
	3.0
135	3.0		412	235	335	210	135	200	290	30	481	350	215	250	350	18	215	180	250	5	18	M12	65	28	8×31.3	95	55	15×5	84
	4.0
155	5.5		442	250	402	252	155	220	320	32	536	390	235	280	380	20	265	230	300	5	22	M12	85	38	10×41.3	110	60	15×5	120
