S(WPS) |
Shaft
Direction
|

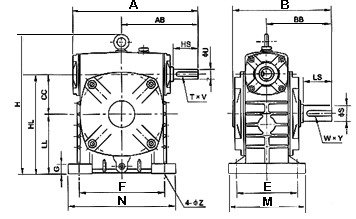

SIZE | RATIO | A | AB | B | BB | CC | E | F | H | HL | LL | M | N | G | Z | INPUT SHAFT | OUTPUT SHAFT | KG | L | HS | U | T×V | LS | S | W×Y | 40 | 1/10 1/20 1/30 1/40 1/50 1/60 |
142 | 85 | 112 | 74 | 40 | 70 | 80 | 135 | 100 | 60 | 90 | 100 | 12 | 10 | 25 | 12 | 4×2.5 | 28 | 14 | 5×3 | 3.8 | --- | 50 | 175 | 105 | 145 | 95 | 50 | 95 | 110 | 180 | 130 | 80 | 120 | 140 | 15 | 11 | 30 | 12 | 4×2.5 | 40 | 17 | 5×3 | 7 | 0.4 | 60 | 195 | 120 | 165 | 110 | 60 | 105 | 120 | 205 | 150 | 90 | 130 | 150 | 20 | 11 | 40 | 15 | 5×3 | 50 | 22 | 7×4 | 10.5 | 0.5 | 70 | 234 | 140 | 195 | 130 | 70 | 115 | 150 | 235 | 175 | 105 | 150 | 190 | 25 | 15 | 40 | 18 | 5×3 | 60 | 28 | 7×4 | 14.5 | 0.7 | 80 | 264 | 160 | 210 | 140 | 80 | 135 | 180 | 265 | 200 | 120 | 170 | 220 | 25 | 15 | 50 | 22 | 7×4 | 65 | 32 | 10×4.5 | 22 | 1.1 | 100 | 322 | 190 | 230 | 155 | 100 | 155 | 220 | 327 | 250 | 150 | 190 | 260 | 25 | 15 | 50 | 25 | 7×4 | 75 | 38 | 10×4.5 | 36 | 2.3 | 120 | 385 | 230 | 285 | 185 | 120 | 180 | 260 | 388 | 300 | 180 | 230 | 320 | 30 | 18 | 65 | 30 | 7×4 | 85 | 45 | 12×4.5 | 63 | 4.5 | 135 | 435 | 260 | 320 | 210 | 135 | 200 | 290 | 445 | 350 | 215 | 250 | 350 | 30 | 18 | 75 | 35 | 10×4.5 | 95 | 55 | 15×5 | 80 | 6.0 | 155 | 507 | 302 | 387 | 252 | 155 | 220 | 320 | 483 | 390 | 235 | 280 | 390 | 38 | 20 | 85 | 40 | 10×4.5 | 110 | 60 | 15×5 | 114 | 6.2 | 175 | 550 | 325 | 407 | 262 | 175 | 250 | 350 | 540 | 435 | 260 | 310 | 430 | 40 | 20 | 85 | 45 | 12×4.5 | 110 | 65 | 18×6 | 150 | 8.0 | 200 | 670 | 350 | 480 | 305 | 200 | 290 | 390 | 610 | 490 | 290 | 360 | 480 | 42 | 22 | 95 | 50 | 12×4.5 | 125 | 70 | 20×7 | 218 | 9.0 | 250 | 810 | 420 | 560 | 360 | 250 | 380 | 480 | 755 | 600 | 350 | 460 | 560 | 48 | 27 | 110 | 60 | 15×5 | 155 | 90 | 24×8 | 363 | 17.0 | |
