speed reducer

speed reducer

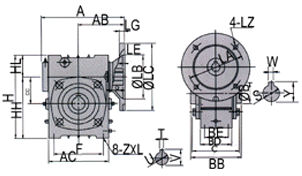

WDK	Shaft Direction

SIZE	KW	RATIO	A	AB	AC	B	BB	BD	BE	C	CC	F	H	HH	HL	Z×L	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																	LA	LB	LC	LE	LG	LZ	Q	U	T×V	S	W×Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	115	40	107	64	50	101	50	85	150	115	35	M6×20	115	95	140	5	10	M8	25	11	4×12.5	20	6×22.8	7
60	0.37		185	105	126	45	117	74	55	111	60	105	177	135	42	M8×20	130	110	160	5	12	M8	35	14	5×16.3	25	8×28.3	11
70	0.37		209	115	155	50	131	84	65	125	70	125	215	160	55	M10×25	130	110	160	5	12	M8	35	14	5×16.3	30	8×33.3	14
	0.75																165	130	200		15	M10	45	19	6×21.8
80	0.75		242	135	174	60	144	94	70	138	80	140	250	185	65	M12×28	165	130	200	5	15	M10	45	19	6×21.8	35	10×38.3	22
	1.5																						55	24	8×27.3
100	1.5		310	175	224	70	175	114	90	165	100	180	310	230	80	M12×30	165	130	200	5	15	M10	55	24	8×27.3	40	12×43.3	36
120	2.2		361	205	264	75	200	134	100	190	120	220	370	275	95	M14×32	215	180	250	5	18	M12	65	28	8×31.3	45	14×48.8	63
	3.0
135	3.0		412	235	304	95	212	144	110	202	135	260	425	320	105	M16×35	215	180	250	5	18	M12	65	28	8×31.3	60	18×64.6	80
	4.0
155	5.5		442	250	330	110	312	170	120	285	155	280	461	358	103	M16×35	265	230	300	5	22	M12	85	38	10×41.3	70	20×74.9	114
