speed reducer

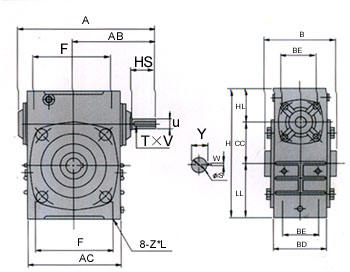

WK	Shaft Direction

SIZE	RATIO	A	AB	B	AC	F	BD	BE	CC	LL	HL	H	Z×L	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	AC	F	BD	BE	CC	LL	HL	H	Z×L	HS	U	T×V	S	W	Y	KG
50	1/10 1/20 1/30 1/40 1/50 1/60	175	105	107	115	85	70	50	50	65	35	150	M6×18	30	12	4×2.5	20	6	22.8	6
60		195	120	117	126	105	80	55	60	75	42	177	M8×20	40	15	5×3	25	8	28.3	85
70		234	140	131	155	125	90	65	70	90	55	215	M10×25	40	18	5×3	30	8	33.3	12.5
80		264	160	144	174	140	100	70	80	105	65	250	M12×28	50	22	7×4	35	10	38.3	20
100		322	190	175	224	180	120	90	100	130	80	310	M12×30	50	25	7×4	40	12	43.3	33
120		385	230	200	264	220	140	100	120	155	95	370	M14×32	65	30	7×4	45	14	48.8	50
135		435	260	212	304	260	150	110	135	185	105	425	M16×35	75	35	10×4.5	60	18	64.4	77
155		494	302	312	330	280	170	120	155	203	103	461	M16×35	85	40	10×4.5	70	20	74.9	100
175		548	325	334	370	320	186	140	175	223	123	521	M16×35	85	45	12×4.5	80	22	85.4	140
200		688	350	346	420	360	200	150	200	245	130	575	M18×35	95	50	12×4.5	85	22	90.4	200
