HANGZHOU CHINABASE MACHINERY CO., LTD.

speed reducer

speed reducer

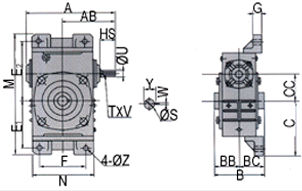

WKO	Shaft Direction

SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	HS	U	T×V	S	W	Y	KG
50	1/10 1/20 1/30 1/40 1/50 1/60	175	105	107	53.5	50	110	50	90	110	90	225	115	14	11	30	12	4×2.5	20	6	22.8	6.5
60		195	120	117	58.5	55	120	60	102	129	100	259	126	15	11	40	15	5×3	25	8	28.3	9
60		195	120	117	58.5	55	120	60	102	129	100	259	126	15	11	40	15	5×3	25	8	28.3	9
70		234	140	131	65.5	65	135	70	120	155	120	305	155	20	15	40	18	5×3	30	8	33.3	14
80		264	160	144	72.0	70	155	80	140	180	140	350	174	20	15	50	22	7×4	35	10	38.3	21
100		322	190	175	87.5	90	180	100	165	215	190	410	224	20	15	50	25	7×4	40	12	43.3	33
120		385	230	200	100	100	218	120	195	255	220	495	264	25	18	65	30	7×4	45	14	48.8	51
135		435	260	212	106	110	253	135	230	285	260	560	304	30	18	75	35	10×4.5	60	18	64.4	75
155		494	302	312	156	140	275	155	250	305	280	605	330	35	20	85	40	10×4.5	70	20	74.9	114
175		548	324	334	167	150	300	175	273	348	320	675	370	40	20	85	45	12×4.5	80	22	85.4	150
