HANGZHOU CHINABASE MACHINERY CO., LTD.

speed reducer

speed reducer

speed reducer

WX

WO

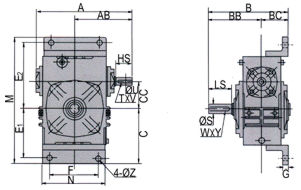

WX Shaft Direction	WO Shaft Direction

SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	HS	U	T×V	LS	S	W×Y	KG
40	1/10 1/20 1/30 1/40 1/50 1/60	148	91	123	78	45	85	40	72	97	70	195	96	10	9	25	12	4×2.5	28	14	5×3	4.2
50		175	105	145	95	50	110	50	90	110	90	225	115	14	11	30	12	4×2.5	40	17	5×3	6.5
60		195	120	165	110	55	120	60	102	129	100	257	126	15	11	40	15	5×3	50	22	7×4	9
70		234	140	195	130	65	135	70	120	155	120	305	155	20	15	40	18	5×3	60	28	7×4	14
80		264	160	210	140	70	155	80	140	180	140	350	174	20	15	50	22	7×4	65	32	10×4.5	21
100		322	190	253	163	90	180	100	165	215	190	410	224	20	15	50	25	7×4	75	38	10×4.5	33
120		385	230	285	185	100	218	120	195	255	220	495	264	25	18	65	30	7×4	85	45	12×4.5	51
135		435	260	320	210	110	253	135	230	285	260	560	304	30	18	75	35	10×4.5	95	55	15×5	75
155		494	302	392	252	140	275	155	250	305	280	605	330	35	20	85	40	10×4.5	110	65	15×5	115
