Gearbox for Agricultural Machinery

200 Series Bevel Gear Drives

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in three ratios: 1:1, 1.5:1 and 2:1
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1" shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The 200 Series weighs 12/15 lbs. including oil
  • Contact Chinabase Gearbox for your special requirements

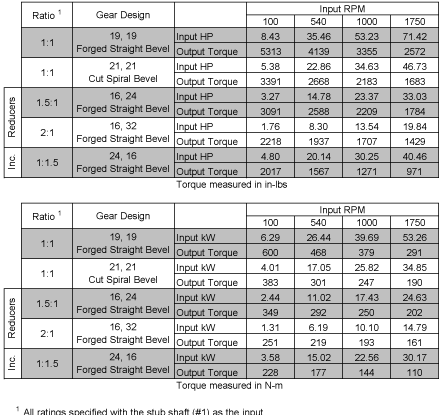

RATING CHART FOR
200 Series Bevel Gear Drives

200 Series Bevel Gear Drives

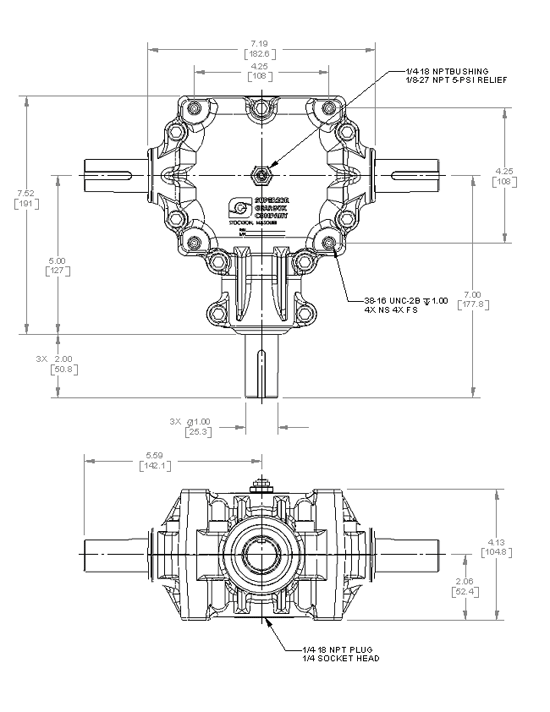

DRAWING FOR 200 SERIES Bevel Gear Drives

200 Series Bevel Gear Drives

SHAFT ROTATION ALIGNMENT FOR 200 SERIES Bevel Gear Drives

200 Series Bevel Gear Drives
