Gearbox for Agricultural Machinery

700 Series Bevel Gear Drives

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in a 3:1 ratio
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1.75" input shaft and 2.75" output shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The 700 Series weighs approximately 120 lbs. including oil
  • Contact Chinabase Gearbox for your special requirements

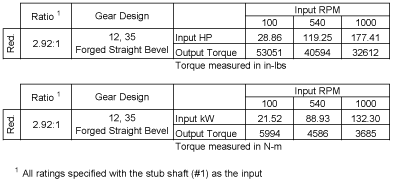

RATING CHARTS FOR Bevel Gear Drives

700 Series Bevel Gear Drives

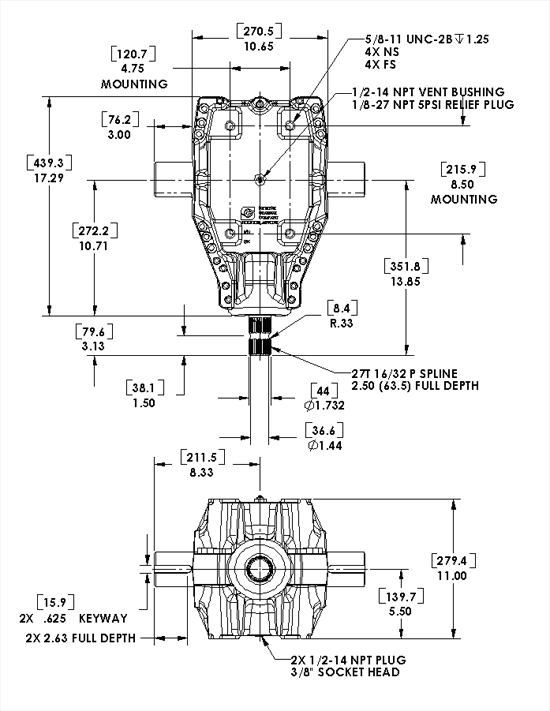

DRAWING FOR 700 SERIES Bevel Gear Drives

700 Series Bevel Gear Drives

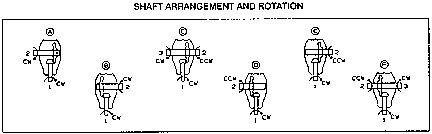

SHAFT ROTATION ALIGNMENT FOR 700 SERIES Bevel Gear Drives

700 Series Bevel Gear Drives
