Gearbox for Agricultural Machinery

H130 Gearboxes Bevel Gear Drives

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in a 1.6:1 ratio
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1.375" shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The H Series weighs 35/40 lbs. including oil
  • Contact Chinabase Gearbox for your special requirements

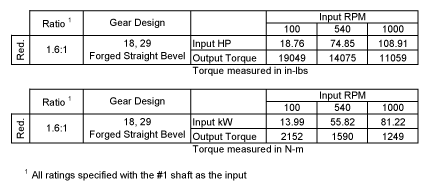

RATING CHART FOR Bevel Gear Drives

h130 Series Bevel Gear Drives

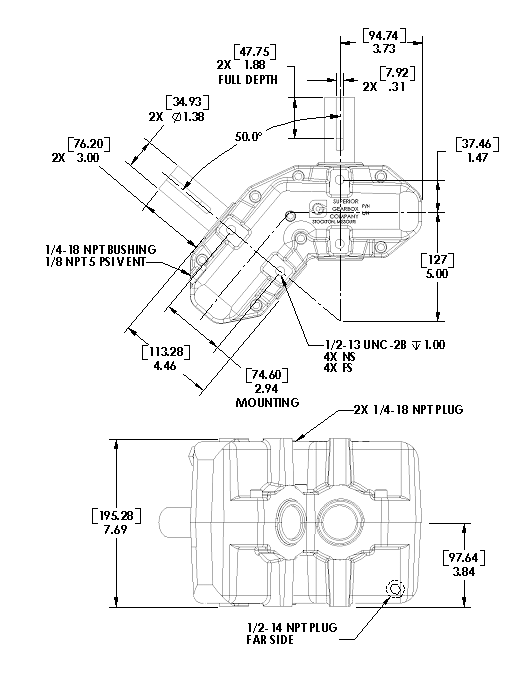

DRAWING AND SHAFT ALIGNEMENT FOR H-130 Bevel Gear Drives

h130 Series Bevel Gear Drives

SHAFT ROTATION ALIGNMENT FOR H130 SERIES Bevel Gear Drives

h130 Series Bevel Gear Drives
