HANGZHOU CHINABASE MACHINERY CO., LTD.

Gearbox for Agricultural Machinery

600 Series Bevel Gear Drives

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in six ratios: 1:1, 1.18:1, 1.35:1, 1.5:1, 1.86:1 and 2:1
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1.75" shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The 600 Series weighs 60/70 lbs. including oil
  • Contact Chinabase Gearbox for your special requirements

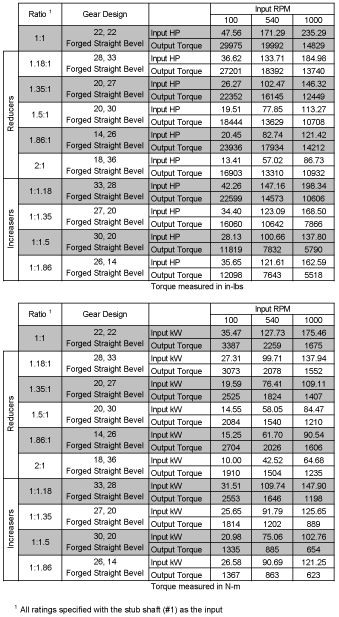

RATING CHART for Bevel Gear Drives

600 Series Bevel Gear Drives

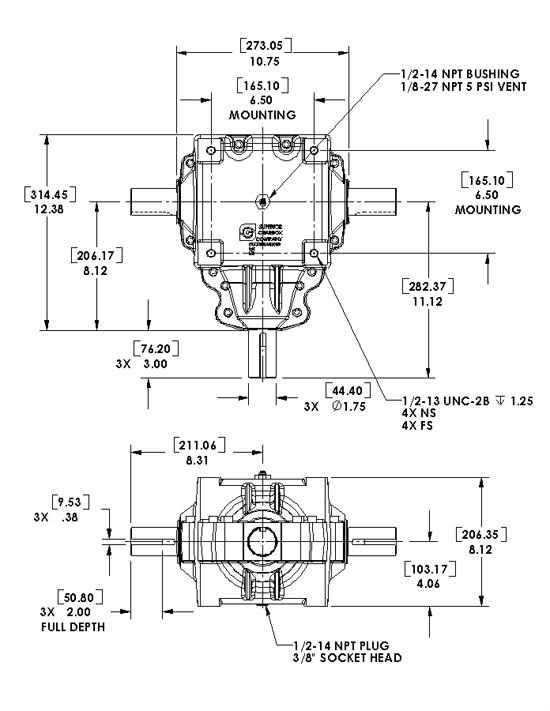

DRAWING FOR 600 SERIES Bevel Gear Drives

600 Series Bevel Gear Drives

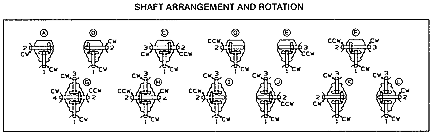

SHAFT ROTATION ALIGNMENT FOR 600 SERIES Bevel Gear Drives

600 Series Bevel Gear Drives
