Gearbox for Agricultural Machinery

500 Series Bevel Gear Drives

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in four ratios: 1:1, 1.35:1, 1.5:1 and 2:1
  • Spiral bevel available in 1:1
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1.375" shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The 500 Series weighs 25/30 lbs. including oil
  • Contact Chinabase Gearbox for your special requirements

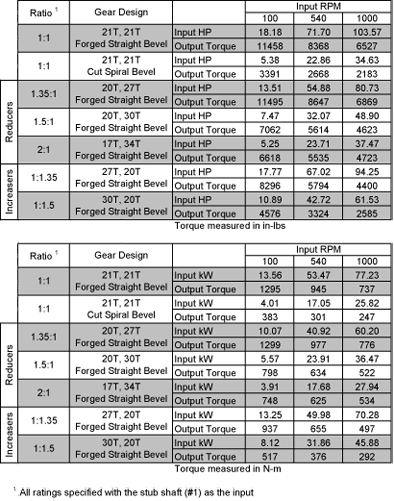

RATING CHART FOR 500 Series Bevel Gear Drives

500 SERIES Bevel Gear Drives

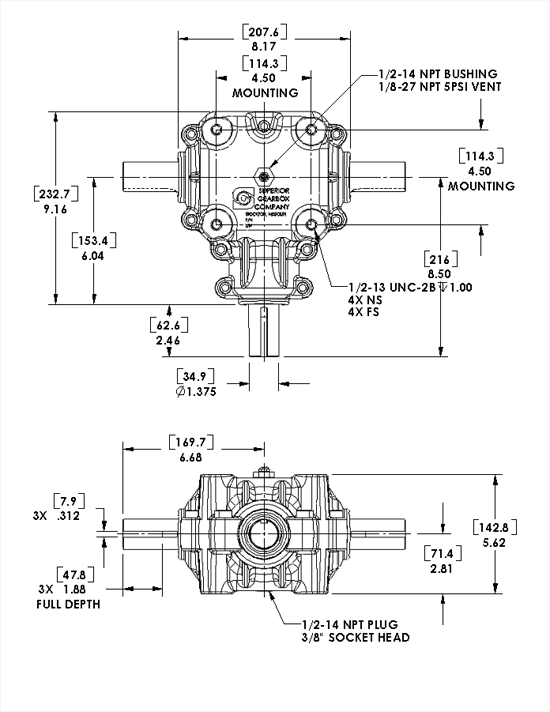

DRAWING FOR 500 SERIES Bevel Gear Drives

500 SERIES Bevel Gear Drives

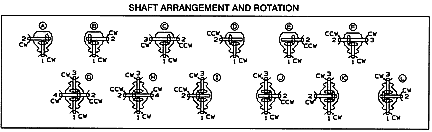

SHAFT ROTATION ALIGNMENT FOR 500 SERIES Bevel Gear Drives

500 SERIES Bevel Gear Drives
